ADI introduces the LT8672, an active rectifier controller from Power by Linear™. This innovative device offers reverse input protection up to –40V, making it highly suitable for demanding automotive environments. With a wide input voltage range of 3V to 42V, it supports low input voltages as low as 3.0V and can handle load transients up to 40V—ensuring stable performance during cold start and stop-start conditions.
The LT8672 drives an external N-channel MOSFET with a remarkable 20mV dropout voltage, significantly reducing power consumption by over 90% compared to traditional Schottky diodes. This efficiency eliminates the need for costly heat sinks, resulting in a more compact and cost-effective design. Its ultra-fast transient response makes it ideal for high-frequency AC input ripple rectification, even at 100kHz, meeting the strict requirements of modern automotive systems.
At run time, the LT8672 consumes only 20μA of quiescent current, and just 3.5μA in shutdown mode—making it perfect for always-on applications where minimal power drain is essential. Combined with its MSOP-10 package and external MOSFETs, the solution delivers a small footprint while maintaining high performance and reliability.
In case of an input failure or short, the LT8672 quickly disconnects the circuit to minimize reverse current transients. Additionally, the power good flag pin signals when the external MOSFET is ready to accept load current, ensuring safe and reliable operation.
The LT8672EMS is available in an MSOP-10 package, while the industrial-grade LT8672IMS operates reliably across a broad temperature range of –40°C to 125°C. The LT8672HMS version extends this range even further, operating from –40°C to 150°C.

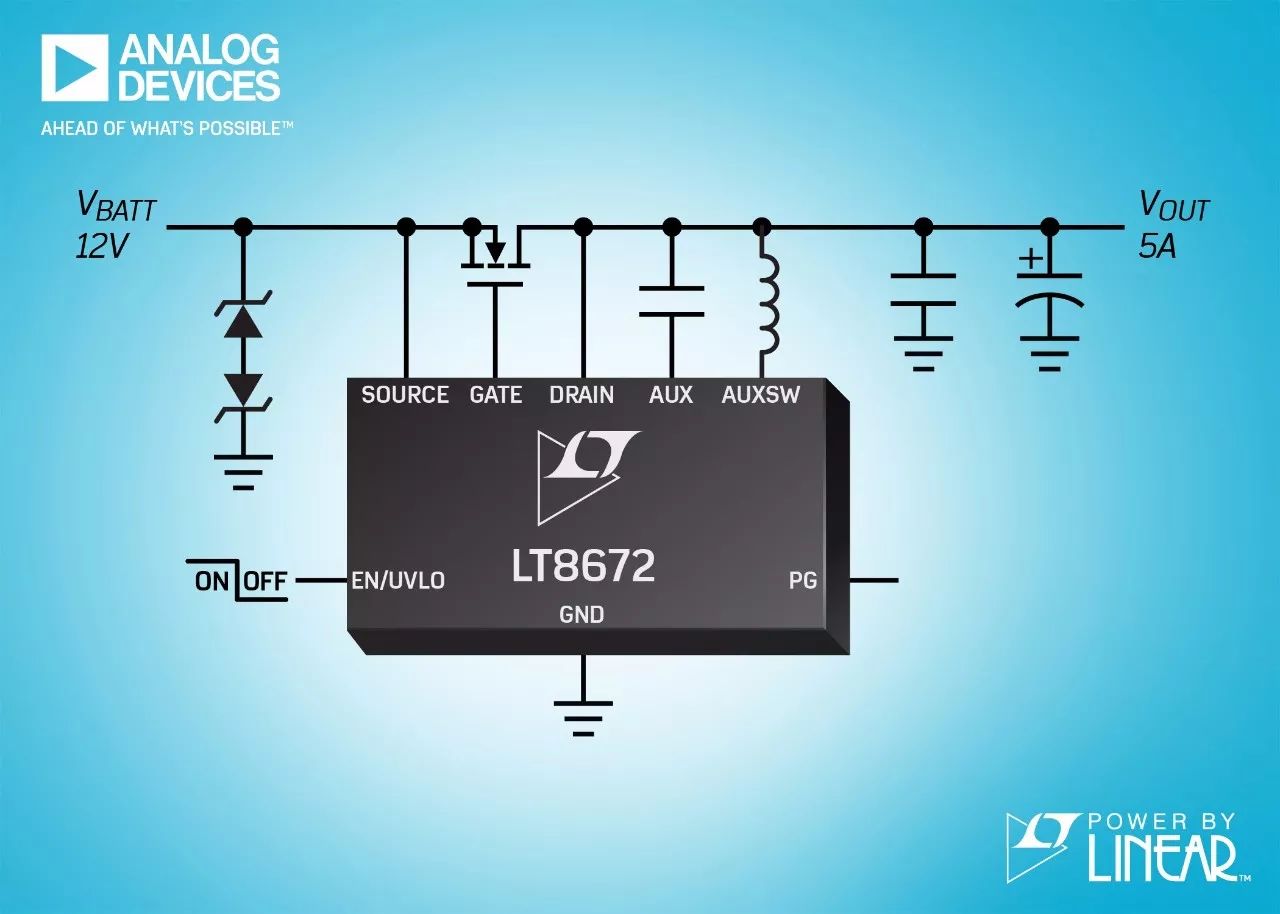

**Typical Application**
**Performance Summary**
- Reverse input protection to –40V
- Wide operating voltage range: 3V to 42V
- 20μA low quiescent current during operation
- Over 90% reduction in power consumption compared to Schottky diodes
- Voltage drop as low as 20mV
- Ultra-fast transient response
- Rectifier capability: 6VP-P up to 50kHz, 2VP-P up to 100kHz
- 3.5μA low shutdown current
- Accurate 1.21V enable pin threshold
- Small 10-lead MSOP package
**Availability**
| Product | Sample Supply | Supply by Production | Package |
|---------------|----------------|-----------------------|-------------|
| LT8672 | Started | Started | MSOP-10 |
For more information on this product, please click **"Read the original"** below.
