The point regulator is a low dropout voltage regulator integrated circuit. The Toshiba TAR5SB15-TAR5SB50 series of point regulators are single-regulated output ICs that use the SOT235 (SC-74A) SMD package structure. They are not only excellent in voltage regulation, but also have over-temperature and over-current protection functions. In mobile phones, PDAs and other portable consumer electronics products that use batteries.

TAR5SB15～TAR5SB50 series point voltage regulator integrated circuits have low dropout voltage (minimum 0.2V), small quiescent current, minimum noise voltage in output voltage, on/off control (output voltage control terminal high level when point regulator is turned on, low Excellent performance when the level is off), the output voltage range is wide (1.5V to 5.0V), the maximum input voltage is 15V, and the maximum output current is 200mA. Each pin arrangement and function: see the following figure, 1 pin voltage input, 2 pin ground, 3 pin output voltage control, 4 pin noise suppression, 5 pin voltage regulation output.

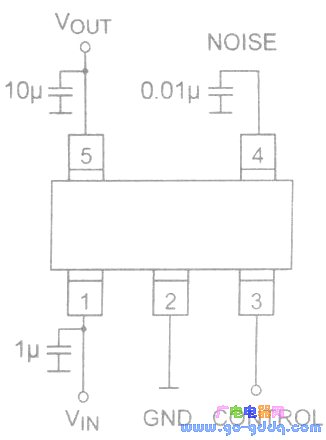

The application circuit is shown below. If the control pin 3 is not used, Toshiba recommends connecting this pin to the voltage input terminal 1 pin VIN.

Normal operating parameters of TAR5SB15~TAR5SB50:
