瑕 掩 掩 or or Yu 不 瑕 瑕 - Cherry Cherry G80-3000 black tea mechanical keyboard small test

Foreword:

According to the law of “send boyfriend's mechanical keyboard to break up within three months” circulated on the Internet, a good friend broke up with his girlfriend after being sent to the mechanical keyboard. He didn’t like the mechanical keyboard, and when he saw it, he was annoying and lost. Give me, so I have this article.

This original price of 700 yuan, of course, the value of the door to clear friends can get a more favorable price.

Want to talk about the feel of the mechanical keyboard first, what is the feel? It is nothing more than the feeling of the tactile sensation, the change of the strength of the key, the sound of the bottom touch, and the feedback of bottoming out. Strength, keystrokes, paragraphs, these three are completely subjective feelings, different people have different preferences, so the axis of choice is said to be more than others, or according to their own circumstances, used to know.

I think that the strengths, keystrokes, and paragraphs are not the characteristics of mechanical keyboards. Even thin film keyboards can achieve a similar feel by changing the structure or adding a spring under the film. The biggest advantage of the mechanical keyboard, I read a lot of articles also asked a lot of people around, get many of the same answer as I thought: a sense of confirmation, that is, clear feedback! Membrane keyboards still have laminated membranes. When pressed to the end, the membranes will be squeezed. Pressing them soft and silent will make them feel low. The mechanical keyboard is a solid collision in the end, accompanied by a clear light tone, making it clear that pressing down, people use cool, high efficiency.

The above is my answer to the question "Where is the mechanical keyboard?"

Cherry G80-3000 mechanical keyboard display:

Simple unpacking

I have to say that the packaging of the cherries sticks, the oversized box scared me, and the rigid shell + sponge mould wrapping did not protect the product.

The front of the keyboard, this style is said to have more than 20 years of history, nothing to say, have seen.

Indicators close-up, large blank, but no beauty, pro-test can put down the cup.

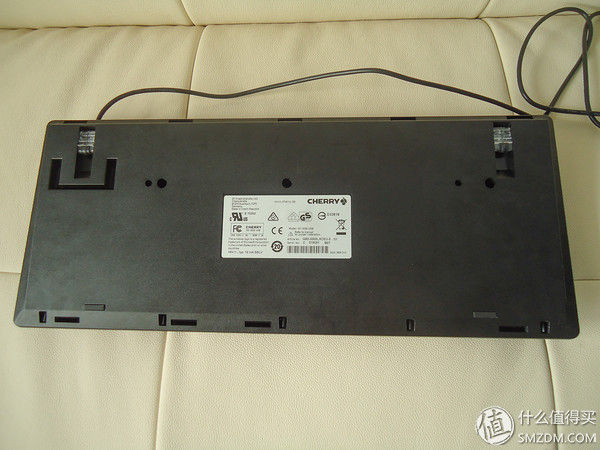

On the back of the bland, it is worth mentioning that there is no one screw, the shell is all spliced ​​together with the buckle is also powerful, there is no warranty mark, the user can easily remove the warranty, really big heart.

This stepped foot depends on a little bit of rubber. When it was unfolded and when it was closed, it was rubber-slip-proof. Although it was a two-in-one design, it was too cold.

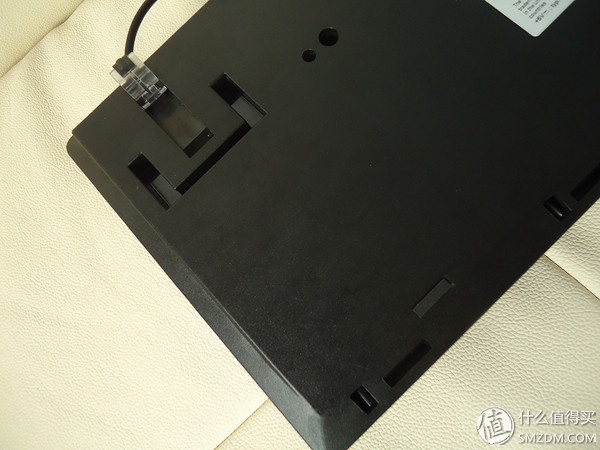

The following non-slip rubber pad is also a loss. Is it true that the budget is insufficient to use the material? As for the U-shaped groove, it is purely designed to jack up the circuit board inside it.

Nameplate

Made in czech republic Czech production, what I have seen so far, the cherry keyboard as long as the models do not have the "MX Board" are basically imported keyboards, not Czech production is Germany. Incidentally, I mentioned other common imported keyboards, FILCO, leopold, and XT and 87, which are basically produced in mainland China. I just elaborate on the facts. However, I haven't said whether you are good or bad. You should not criticize this by criticizing me.

Tip: The SN tail number "B07" represents the production date, "B" represents 2015, and "07" represents the seventh week. The serial numbers of the cherry keyboards are numbered according to the production year. The first year's product number is “A”, and then it is edited in sequence. In fact, the number “B” in my hands is actually the second round. This means that the keyboard has been 28 years old by 2015.

The information plate on the box, such a large brand of such expensive keyboard dare to one year warranty, there is a bit of awe. The similar date code "00150821" is much later than the production date and should be the time to confirm the OEM's time of importing China.

The unobtrusive plugs, true to the truth, are now just a keyboard. No matter if they are useful or useless, they will engage in a gold-plated head, anti-jamming magnetic ring, and even if there is a braided wire, the cherry plug will be too shabby.

Wire puller, this is probably the only thing this keyboard can keep up with the trend. The design is very hard, the workmanship is great, there is a button on the head.

Wire puller hooks the shaft

Wire puller is a lot smarter than ordinary plastic puller, but cherry keyboard is probably the least suitable keyboard for wire puller . Because there is no steel plate, the shaft body is exposed more than the keyboard with the steel plate. It is easy to press the key puller to hook the shaft body as shown in the above figure. If you inadvertently, you may unplug the shaft. When I used it for the first time, I hooked on the shaft and tried my best not to pull it out. Then I took a closer look and secretly glad that I didn't use any more energy.

Satellite axis

I myself feel that the satellite shaft is actually a complement to the balance bar. Compared to the balance bar, it is to wrap the two keys next to it. This will make the button more stable, and it will also bring resistance and friction, making the big keys very fleshy. From my point of view, cherry's satellite axis is so big I can't stand it.

Ergonomic arc keycap

POM material, the font is rough to paste the paint on the top, the middle thick on both sides of the thin, font printing is very rubbish.

The "f" and "j" keys have no raised marks and are identified by a higher arc. I feel less comfortable than bumps.

The G80-3000's keycap (right) has a smaller press area and lower height than the OEM keycap (cool xt).

Dismantling:

Each clip has a small groove to allow you to open the clip and insert it to open it.

Thick plastic texture ah!

The empty upper and lower borders are nothing more than bigger and bigger. There are three large pillars in the middle of the F zone and the following buttons to fix the circuit board, and know why there is a big groove below the F zone of the keyboard!

As mentioned earlier, there is a U-shaped groove on the back of the keyboard, which is used to fix the circuit board of the indicator lamp. The connection cable is simply stuck there.

The board can be turned upside down with three pillars. It's not a fancier. It doesn't feel good on the board. Is this a few feet? The master told me that there are seven feet on plastic feet.

Under the shell + circuit board + axis + keycap + upper shell = keyboard, no high-tech, it is so simple, the cost feels a hundred or less, the price of the mechanical keyboard is now fried high, but still like to buy, no way .

to sum up:

Tea Axis: Some people say that the axis of the tea is the most film-like axis. This is probably because the weak passage of the tea axis feels similar to that of the film rubber bowl. However, the feedback of the mechanical keyboard bottoming out is beyond the membrane keyboard, so there is no Comparability. The axis of the tea is just a little more friction than the red axis. It is my second choice to remove the red axis. I remember that ZEALER had a video survey of his company's keyboard and found that the tea axis was the largest, and it was clear that the tea axis was still quite popular.

Shape: Nearly thirty years ago, various styles, rough, big forehead and big frame are all empty shelves, hard and big, the keyboard is very weak, it is completely backward design. Big heads, light weight, and a mat that was lost, caused a large piece of the keyboard to be placed there, but it did not have a stable and solid feel. It is ugly, but friends are too ugly to not want it, probably only retro will like this style.

No steel feel: no steel plate feel really special, no steel plate makes the keyboard touch the bottom more elastic, the sound is not so bright, plastic collision sound. The softer touch did not lose the sense of confirmation of the mechanical keyboard. It was very good, especially when the keyboard was strongly pressed. The elasticity of the non-steel plate was much better than that of the fixed keyboard.

Satellite axis big key: meat! Very meat! Very meat! If the tea axis and the membrane keyboard have a three-point image, then the cherry tea axis satellite axis large key and the membrane keyboard have a seven-point image, because it not only increases the resistance during the pressing, the bottom-feedback feedback is also inexplicably soft and sound. It's boring, and it's not too far from the film. I suspect that the cherry is not going to debug big keys. This point is that the domestic manufacturers are much better, and the Gaussian satellite axis key is very smooth.

In general, the disadvantages are poor shape, large size, large keys, and the unique advantage of having no steel feel. For me, the disadvantages of appearance and big keys are unacceptable to me. What's more, it has many details like pads and wires that lag behind the times, so I don’t think it’s a cover for Yu’s keyboard. I’m even There is no appetite for the red 3494 in the same series. Of course, some people think that shape does not matter, they like the big button meat, steel-free feel cool people, then in their hearts this keyboard is nothing to hide. I just describe the facts truthfully, how to judge or get everyone according to their own situation.
