Looks like a NAS hard disk cabinet ORICO Oricore NS200U3 3.5 inch hard disk cabinet
Simple and crude, first on the purchase link
ORICO is also a brand we are familiar with, not to mention the quality and technology, simply look at the appearance, this factory gives the impression has always been strong local flavor, industrial design is almost 0, forcing the grid was in dispute with another factory Anker's crane hit. Recently, however, the company seems to be asking people to carry out industrial design. The appearance of the product has been improved, and people have the desire to purchase.
This time, this single hard disk cabinet is also such a product. If you don't look closely, you might be a group or Huitong (I'm kidding). Put an official poster first and it's kind of...
On the front and back of the box, it looks a bit big
The first eleventh pre-sale, sent a bunch of gifts, these last together under the sun:
The inner packaging is the main body, the accessory box and the manual. This equipment is very simple and almost no manual.

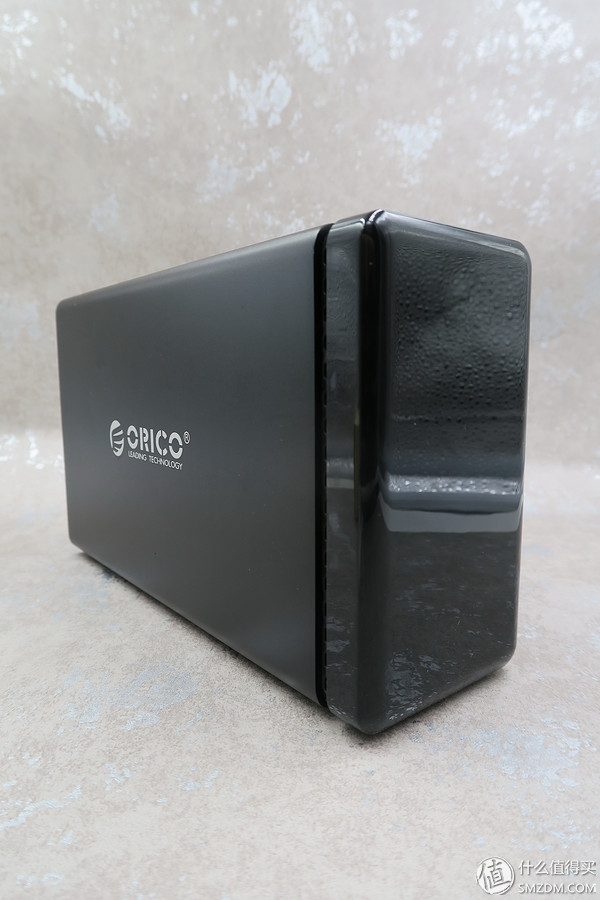

Look first under the body, big LOGO
Front panel
The tail except the heat dissipation port is the power switch, data interface and power interface.
The front panel is magnetically designed and can be removed directly. Two leaf doors, the location of the interface insertion has been marked on the door, as long as the hard disk is aligned to insert.
Three status lights below
Front panel
On the back of the front panel, the bottom three holes are for light transmission, surrounded by a ring of cooling holes
Weight 1KG more points
Buy a block of WD4T into the red disc, heart in the blood......
By the way... 4T red plate bought by a certain East
When I saw the special offer of the electricity supplier, I felt very bad... Heartbreak
Ordinary hard disk, plus a pack of deoxidizer (desiccant?)
back……
Let's go back to the hard disk drive... Hard disk has been plugged
Next, just cover the front panel, connect the data cable and the power supply to use... Follow the instructions strictly, first connect the computer, then turn on the power supply... Immediately, feel a small fan next to it and say good silence. What? ! The fan is too loud, and it seems that it hasn't changed its speed with temperature. It has been running at full speed. Hey... tangled, ignore it first.
Open my computer, uh... Sure enough nothing is shown, of course, not something is broken, it is not formatted.
Forgot to cut the formatting before, and used the 256G solid state notebook, a lot of small home gas, 4T plate divided into two areas. (Don’t tell the messy partition of the main dish, I already cried)
This is normal, and immediately Serra points in and releases the C drive space.
Then try to transfer, first copy a single large file directly with windows, copied into the copy out of the transfer speed are similar, 150MB / S up and down
The results of testing with the USB Flash Benchmark were similar, with consistent reading and writing. File transfer rates of over 1MB were basically 150MB/s, but the rate of small files dropped significantly, especially below 64K. 1K files had dropped to around 6MB/S. It can be considered relatively normal.
With WD MYPASSPORT mobile hard disk measured, the large file is 96MB/S or so, completely defeated
Also take the C drive to draw a curve comparison (dash is a C drive, local disk, solid state drive), and it's a lot faster
Simply sum up:
1, the function is simple, can not be arrayed; 2, need NAS function to match the USB interface of the router; 3, noisy; 4, cheap, simple; 5, transmission speed is good, video, games no effect ... ...
Appendix: Gift List
Hard disk cartridge, storing a standard 3.5-inch mechanical hard disk
There is a block buffer sponge on the lid, the only buffer material for the entire box
Loading effect
New plug board
The value of Yan is a lot higher than before. Before many styles, all kinds of inexplicably wonderful things were done. It was not concise. This flapper is still a good workmanship.
USB interface on the side
Logo, USB is 5v2.4A smart identification, but does not seem to support QC2.0

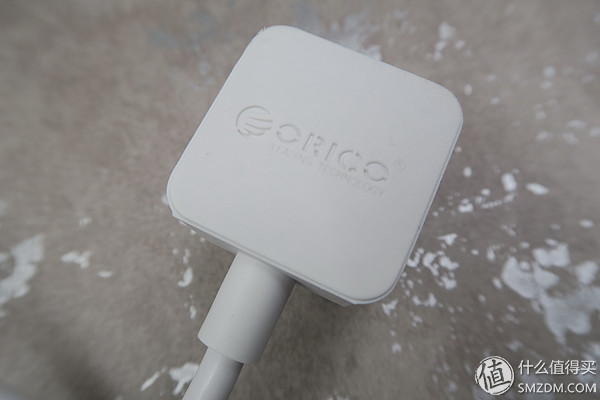

Plug on the LOGO
The manual and the anker became like, dislike... The reforms were late and not fresh enough.
Brand mouse pad with seaming, ordinary.
Summary: If you simply want to expand the storage space of the Ultrabook, or have a powerful router that requires a large external storage, then this drive is a good choice, double 11 price And giveaways are still considered affordable. Of course, he must also pay attention to his uninterrupted fan.
PS In this product, you can see a little orico change, hope to see more quality and price in the future, industrial design better orico it ~
